Rooftop solar projects in Mohali

Site photographs from our installation work. Further projects will be added as they are completed, with the owner's consent.

6 kW home system, Mohali

Work in progress. These photographs show a residential rooftop system being installed by our installation team in Mohali. They were taken during the work, before final finishing.

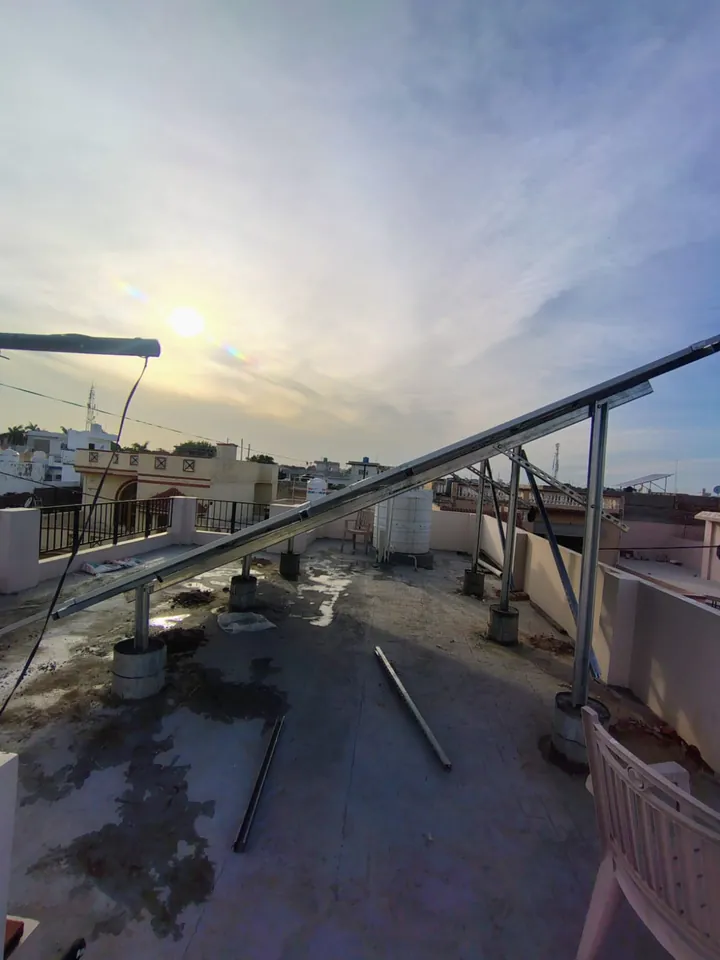

Galvanised steel solar structure with legs set in concrete footings on a flat roof, before the panels are fitted — The structure goes up first: steel legs set in concrete footings, with the rails fixed at the planned tilt.

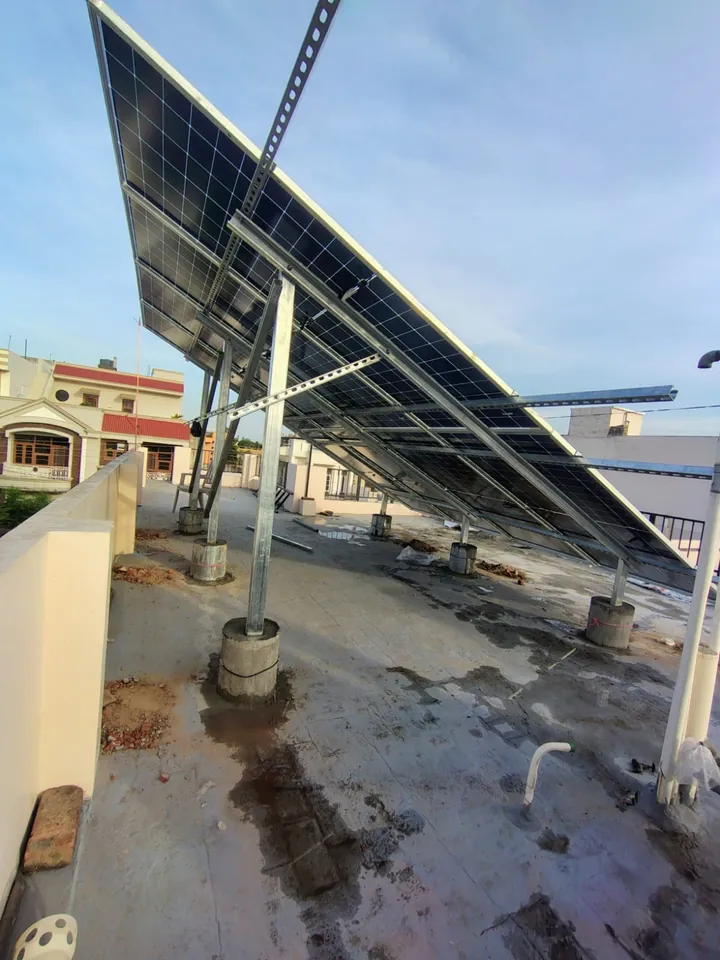

Underside of a raised solar structure, showing the steel legs, rails and bracing — The elevated structure keeps the roof usable underneath.

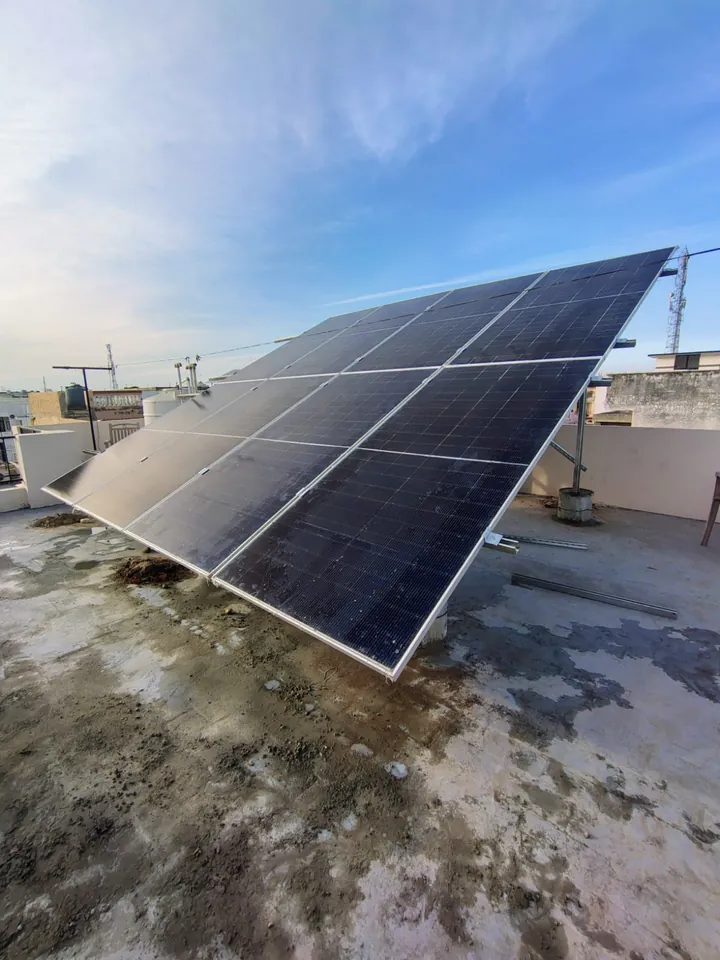

Rows of solar panels mounted on a raised structure on a house roof — Panels mounted and clamped to the rails, in straight rows.

Solar panels mounted on a rooftop, seen from the front — Next come the wiring, the inverter and a final clean-up of the roof.

Installation quality checklist

When evaluating any installer, ask to see photographs of completed work or visit a site. These are the points we inspect on every installation.

Footings. Each leg should be set in a proper concrete footing that can withstand storm winds.
Structure. Galvanised steel, free of rust at cut ends and welds, and braced against movement.
Panels. Aligned in straight rows, clamped at the points specified by the manufacturer, and free of shading from tanks or walls.
Cabling. Routed in conduit and secured, with nothing hanging loose beneath the panels or lying in standing water.
Earthing. A dedicated earthing strip from the structure to ground, and a lightning arrester above the panels.
Roof condition. Left clean, with no debris and no damage to the waterproofing.

Every Maya Green Power proposal also sets out a seven-point written specification before work begins.
